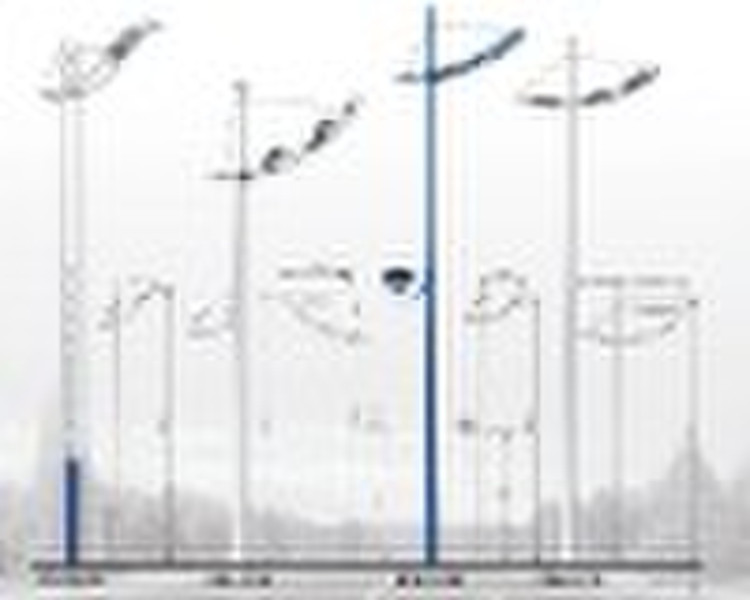

hot-dip-galvanize steel lamp pole

All NEM Pole designs will withstand a gusted wind velocity of 100 MPH (160 km/hr)acting upon the structure with its appropriate fittings (signs, signals and luminaires).Loads and structural dimensions are in accordance with the latest edition of theNational Building Code of China. or latest ASTM stardandMaterialsAll materials utilized by NEM Pole meet or exceed international. Standards or on Customize Request. Poles are produced using steel, "self-weathering" steel Q235B SS400, Q235, (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2WeldingAll welding done by NEM Pole conforms to GB/T3323-1989111. Any circumferentialwelds are 100% penetration with some shaft to baseplates jointed with inside andoutside fillet welds, and longitudinal welds have a minmum penetration of of 60%.FinishesThere are four finishes available for the Tubular Poles:1) Rugh cast2) Prime Paint3)Hot Dip Galvanizing GB2694—884) Powder Coat GBP286—8805) Powder Coat over Hot Dip GalvanizingAccessoriesAnchor Bolts• Available in M10- M32 “J” Type and “I” Type Anchor Bolts• Hot dip galvanized• Supplied as optional product• Supplied with hexagon nut and washerNut & Bolt Cover• Supplied with pole. Designed to fit the bolts.• High strength polyurethane• Available in coloursHandhole•Pole is supplied with customize handhole, grounding stud , handhole cover and theft-proof lockThe standard tenon size is 60mm/76mm O.D.Any designs not shown in this catalogue can be produced by NEMand inquiries should be communicated to company representatives.Approval drawings are available on request.All measurements shown here are imperial measure (mm. M, kg )
